Types of Paint Brush Wooden Handles
Pine Wood Handle Paint Brush: Pine wood is a commonly used material for making paint brush handles due to its soft texture, which makes it easy to cut and process, and its relatively low cost. Although pine wood is easy to process, its hardness and strength are relatively low, which may affect the durability of the final product.
Oak Wood Handle Paint Brush: Oak is a high-quality wood, hence its brush handles have good firmness and durability. It has a clear grain structure and better feel, but the cost is relatively high.
Cherry Wood Handle Paint Brush: Cherry wood has bright colors and a fine texture, resulting in aesthetically pleasing and elegant brush handles.
Walnut Wood Handle Paint Brush: Walnut wood has beautiful grain patterns and a good feel to the touch. It is commonly used in the production of finely crafted high-end paint brushes.
Birch Wood Handle Paint Brush: Birch is a lightweight wood, its natural color and texture gives a warm feeling. Some high-end art paint brushes also use birch for the handle.
Types of Paint Brush Wooden Handle Machines in China.

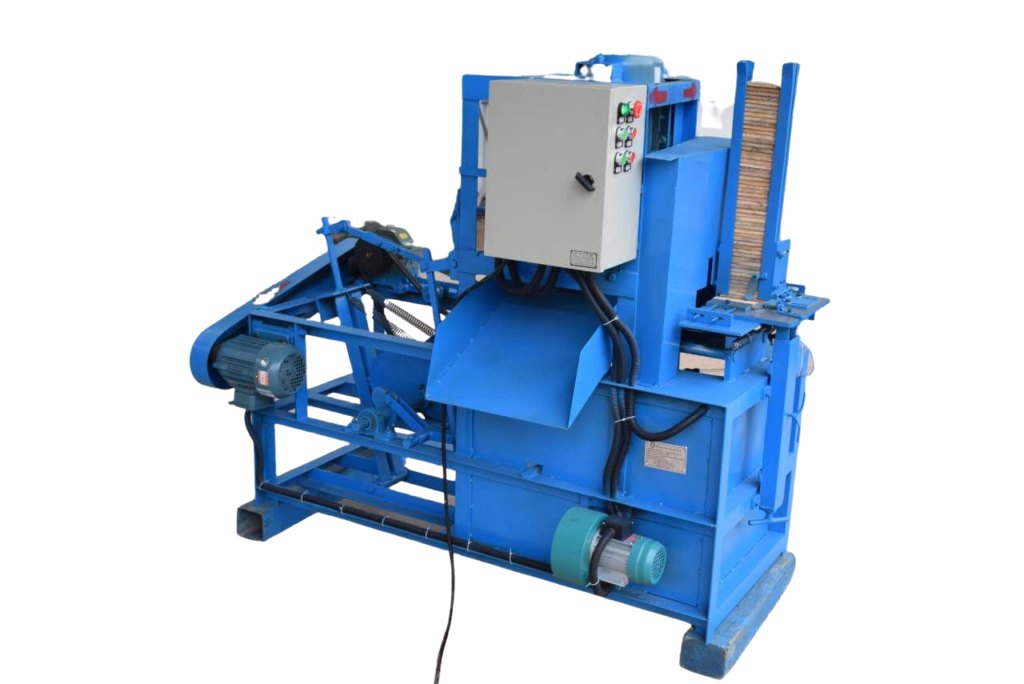

Paint Brush Wooden Handle Raw Material Shaping Machine
Before entering the production line, the trees are first preliminarily processed by the Paint Brush Wooden Handle Raw Material Shaping Machine. The log would be moved to the initial position of the Paint Brush Wooden Handle Raw Material Shaping Machine, then be trimmed by the built-in saw blade in the Paint Brush Wooden Handle Raw Material Shaping Machine, forming blocks suitable for making paintbrush wooden handles. At this point, the machine automatically adjusts the depth and angle of the cut to ensure the consistency of the wood block products. It is then shaped into suitable sizes and shapes. This Paint Brush Wooden Handle Raw Material Shaping Machine uses semi-automatic shaping, saving equipment cost, and the cut wood has achieved the result of maximizing wood utilization, reducing the waste of wood offcuts.

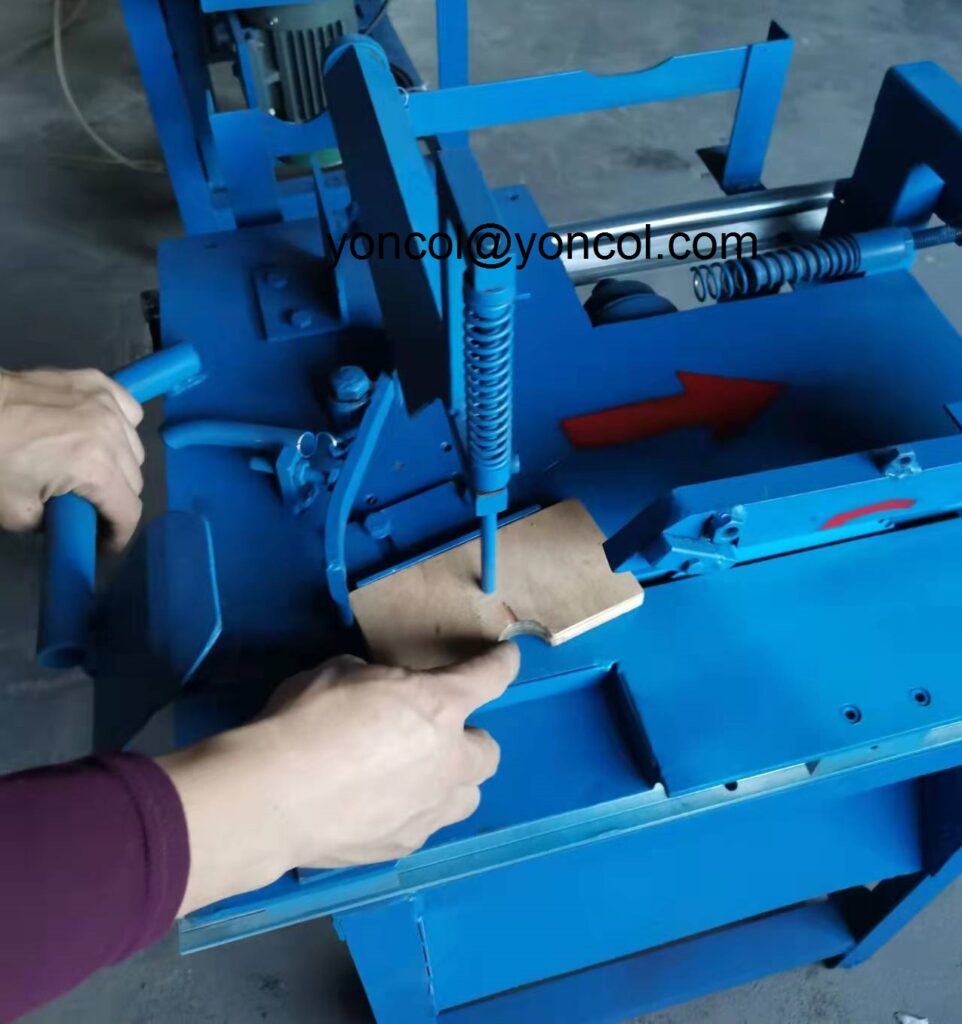

Paint Brush Wooden Handle Forming Machine
Different processing methods are used for the automated production of different types of paintbrush wooden handles

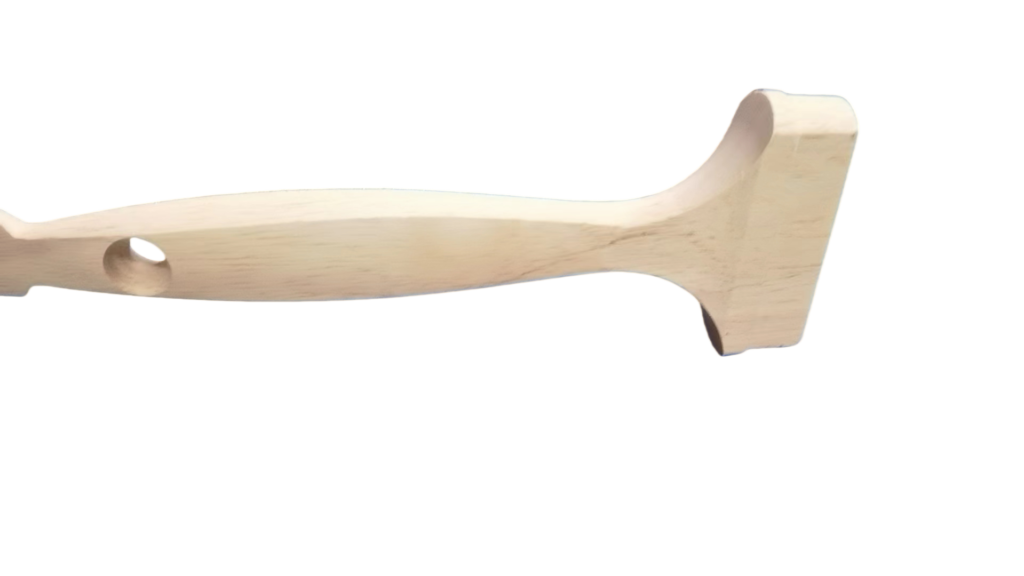

The product in the above picture is processed by a Paint Brush Wooden Handle Forming Machine. The Paint Brush Wooden Handle Forming Machine uses a mechanical method to complete the production of a single product. If it is necessary to change the specifications and outer shapes, it is necessary to change the mold of the Paint Brush Wooden Handle Forming Machine to achieve automated production of different specifications.

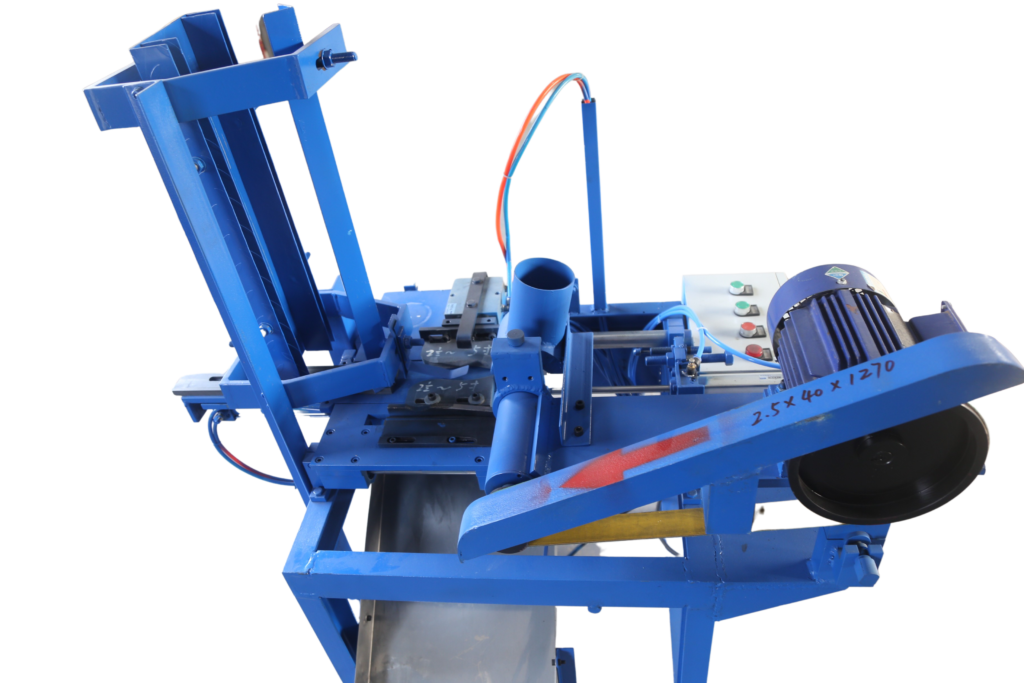

Paint Brush Shaping Machine

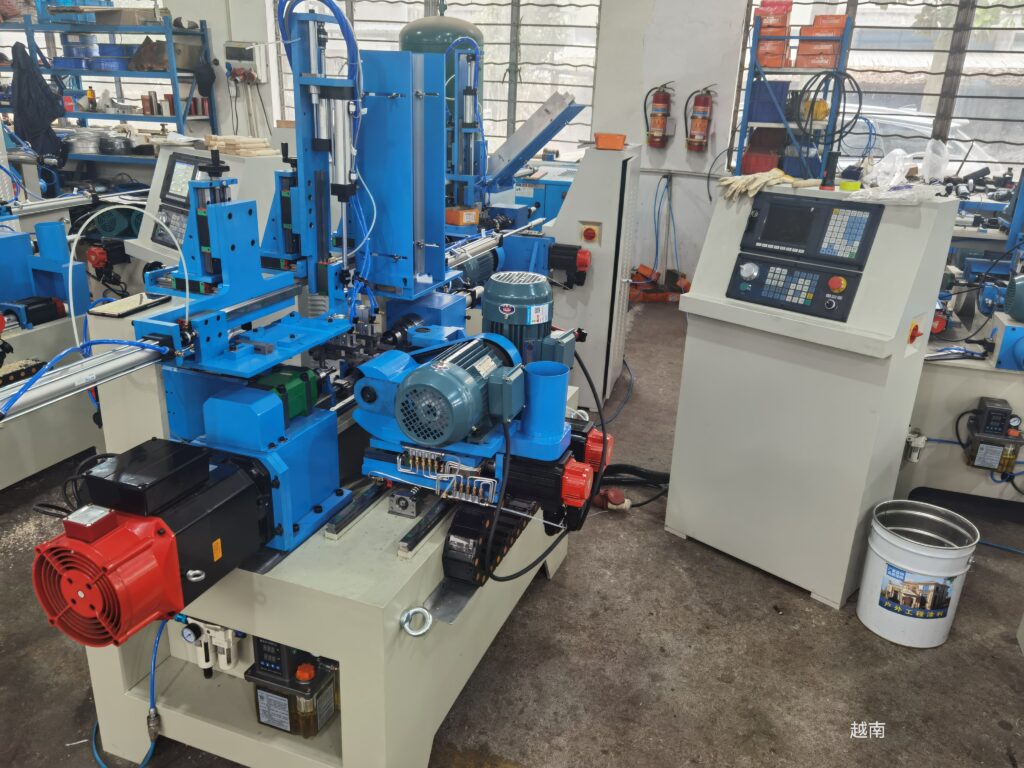

Paint Brush Round Wooden Handle Machine

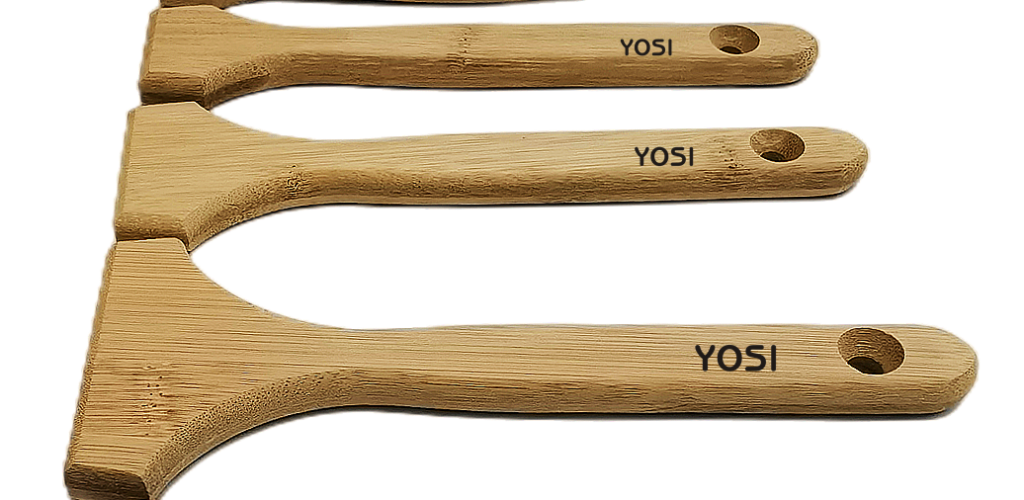

The above products use CNC numerical control programs, and the Paint Brush Round Wooden Handle Machine cuts the wooden blocks into fine brush handle shapes according to preset parameters. During this process, every detail is accurately calculated and processed to ensure the consistent shape and size of each brush handle.
Paint Brush Round Wooden Handle Machine debugging part: The raw material discharge of the paint brush needs to debug the mechanical part (https://youtu.be/QCosZ0jF4Ns?si=n1VymiJcl7VP074u) gourd handle making machine, round handle making machine, round brush handle making machine
Machine advantages
Absolute value servo motor: Absolute value servo motor is different from ordinary servo motor. Its biggest feature is that it can accurately record its own position information under any conditions. That is to say, the motor can remember its position regardless of whether the power is off or the servo motor is running. This is mainly due to the absolute encoder, a device that can store position information even without power supply, thus making it possible to achieve high-precision position control of the motor.
Absolute servo motors are widely used in many fields that require high precision and long-term stable operation. For example, in the fields of industrial robots, CNC machine tools, automated production lines, packaging machinery, etc., it can provide high-precision position control to ensure efficient operation of equipment.
At the same time, complex zero return operations are avoided, the reset time of the equipment is greatly reduced, and the equipment can resume work faster after an emergency power outage or failure. More importantly, due to the precise position control of the servo motor, the heat and noise generated by the equipment during operation are effectively controlled, thus providing a better operating environment.
Compared with incremental servo motors, after-sales problems are much less. In 2017, we used incremental servo motors as machine motor accessories, but practice tells us that the absolute servo motors used in this machine can basically eliminate any faults and ensure Long-term stable production of the machine.
You provide drawings and I will recommend suitable machines to your email.
