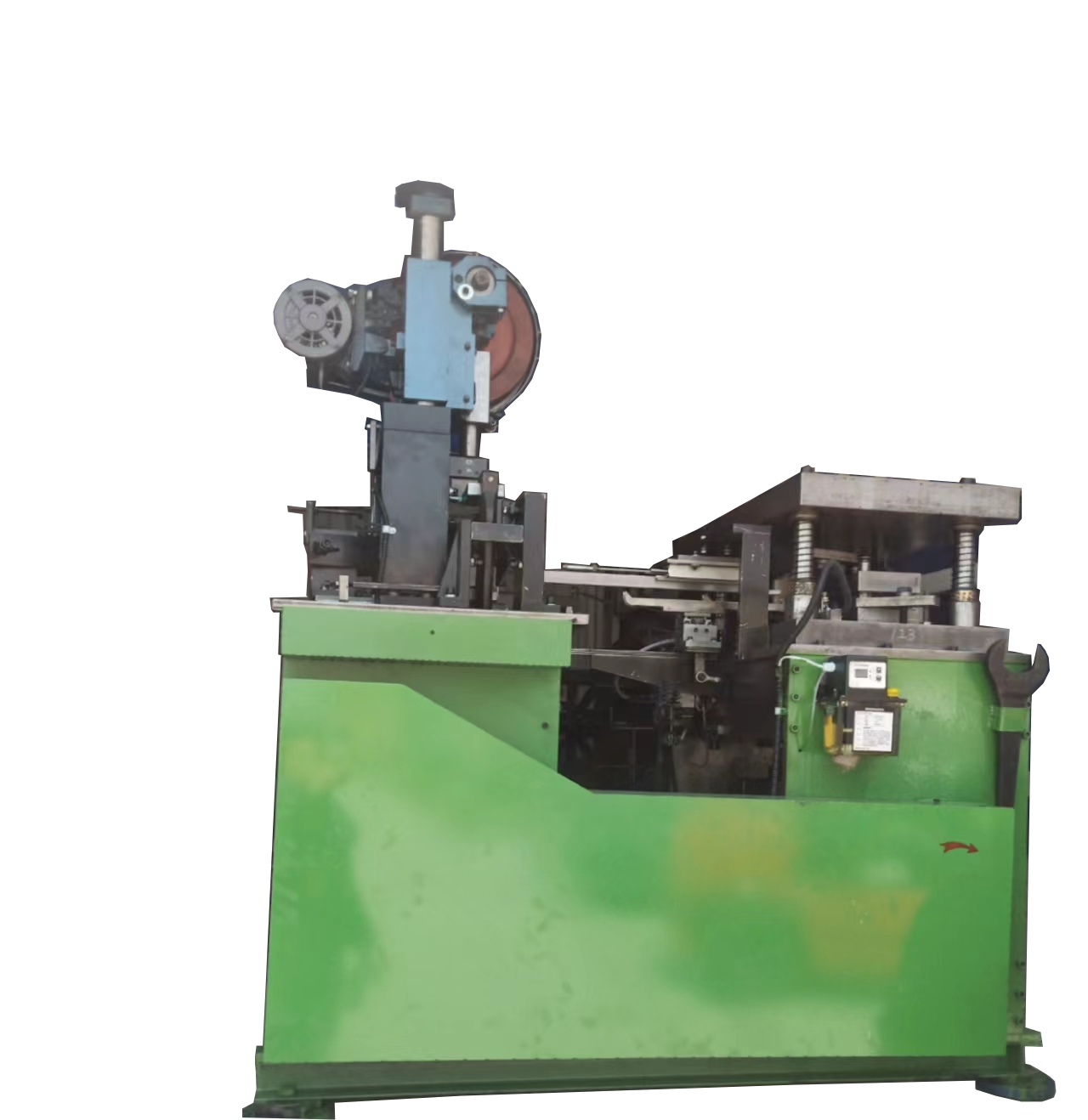

Paint Brush Ferrule Machine w/o Punching Set

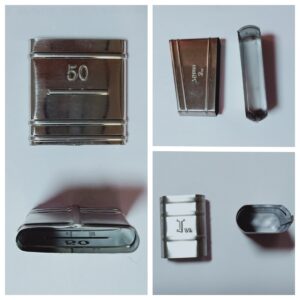

1>Flat Ferrule Size Available:1″/2″/3″/4″/5.
2>Settled Speed: 35pcs/minute.
3>Power: 380V, 50Hz, 3phases, 7.5kw. Air Supply: 0.6MPa, 4-6kg,1- 2L/min
4>Pressing Power 25tons pressure
5>Working accuracy: 0.05-0.1mm
6>Controller: XINJIE PLC, stepper motor feeding tinplate
7>Fixed length range:0-400mm
Area Space for display:4L*3W(M)

8>Machine can work with Tinplated, Stainless Iron, Copper Plated, Brass Plated Metal Stripes with 0,25 – 0,30mm thickness and 32-35-40-50mm height. all the raw material must be available to magnetic.

9>Machine includes shaping motor to help the shaping mold to make the ferrule shape more straight and stronger in shape
10> Coil Feeder Sizes: ID min. 350mm & OD max. 900mm
11> It can stop when reaches to the required quantity, the automatic stop of the counter is controlled by the sensor of the drag level.
