Paint Brush Head Combing Trimming and Flapping Machine

1>Brush Sizes: 1″- 4″
2>Power: AC380V, 50/60HZ,10KW
3>Capacity: Customize according to different stype of brush bristle
4>Crate size:7.2(L)×1.5(W)×0.9(H)m
5>Controller: Controller+Frequency
5>Worker: 1
6>Collection of filament split ends(flocking), combing and trimming paint brush bristle in one machine.
Significant reduction in the traditional production process, reducing the amount of labor.
Brand of Main Electrical(No Pneumatic Parts) :
Frequency: DELTA
Contactor: CHINA DELIXI(德力西)
Motor: Chinese Brand SHANGHAI LI CHAO+DEDONG(德东)

Option1: fully automatic line with functions of R angle/flat trimming/combing and cleaning/splitting/flapping in one machine

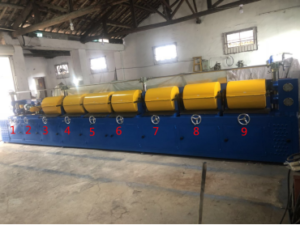

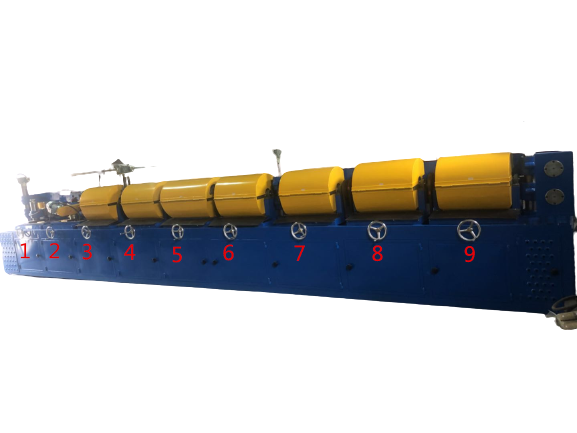

Overall Stations showing with totally 9 stations.
The working unit steps could be adjustable and customized , below introduction of our Indian customers customized working process for your understanding.
Machine has 9 stations inclouding 5 functions:
A.1>Trimming for FLAT brush head(flat trim)
B.2>Trimming for ROUND brush head(chisel trim)
C.3-4>Combing and cleaning
D.5>Sliting
E.6-7>Double combing and cleaning
F.8-9>Flapping
Machine sizes: 7.2*0.9*1.42M
Weight: 1550kgs

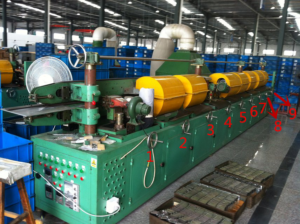

Detailed Units

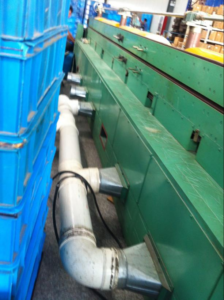

Dust extraction connection to your factory dust cleaning system

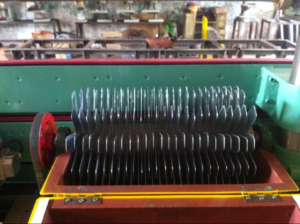

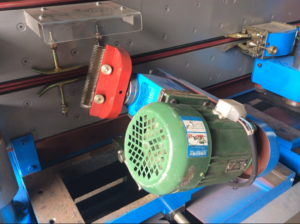

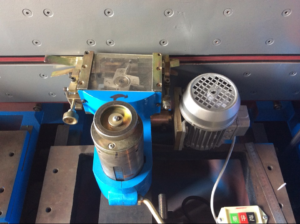

1)Trimming for FLAT brush (flat trim)                                2)Trimming for ROUND brush(chisel trim)

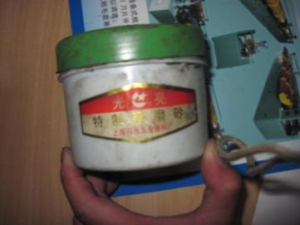

The switch is separated and control only for this function. When you need to sharpening the cutter and put lubricant oil , please turn the                                                                                                              motor 180degree for maintenance. Below picture of the lubricant oil for your reference.”

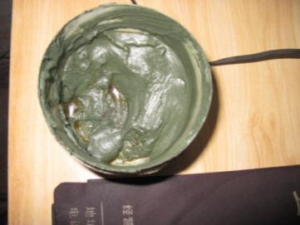

The sharpening coating showing

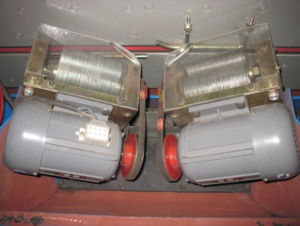

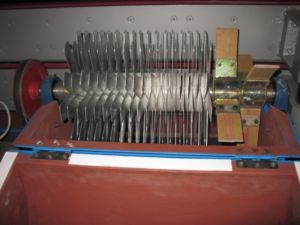

3-4) Combing and Cleaning                                                                         5)Slitting

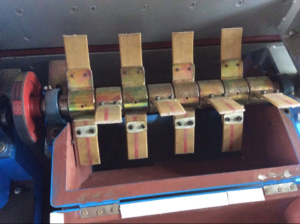

6-7)Double Combing and Cleaning                                                      8-9) Flapping


Advantage of this machine:
1-R angle cutting or flatting trimming cutting for your option on one machine;
2-Larger abilities and more flexible for both natural and synthetic filaments
3-Double combing and cleaning functions, totally in 4stations to make sure more beautiful and premium quality on the finished brushes”
